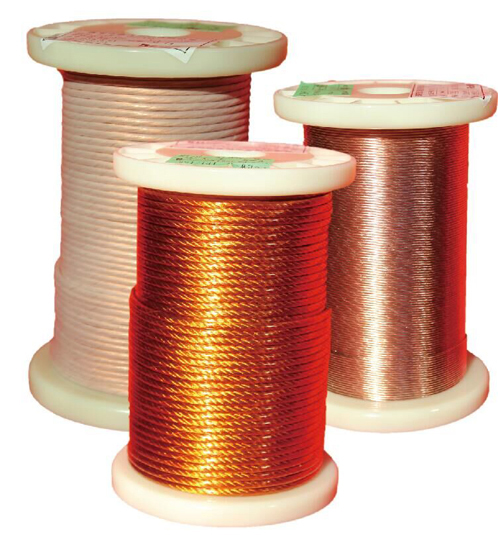

Reinforced Insulated Wire


For application areas with high demands for mechanical, electrical or chemical resistivity LITZ wires can be additionally coated with different materials,such as Mylar film, ETFE film, High temperature polyester-imide film and NEMOX paper and other film as need. The different film could be used together to make a better electrical performance.


Insulating Materials

Thickness

Thermal

Breakdown Voltage

Overlapping ratio

PI film

1mil/2mil

200℃

3500/7000V

20%/30%/60%

ETFE film

2mil/3mil

155℃

5000/11000V

20%/30%/60%

Mylar film

3mil/3mil

130℃

6000/10000V

20%/30%/60%

NOMEX paper

2mil/3mil

220℃

800/1600V

20%/30%/60%
